FANUC DR-3iB/6 Stainless
More actions
4-axis stainless delta arm for food packaging

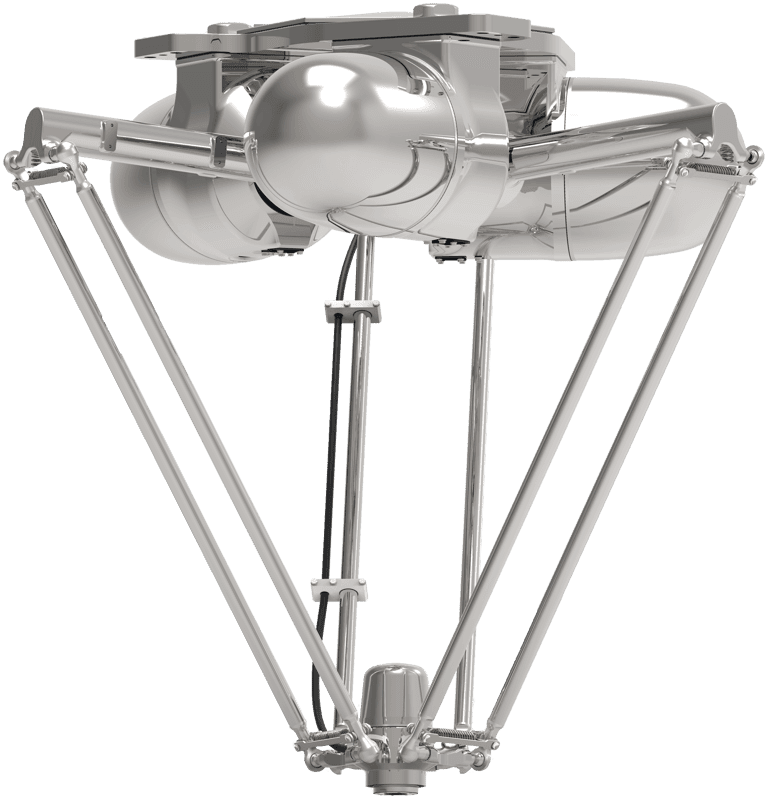

More from FANUCFANUC DR-3iB/6 Stainless is a four-axis delta robot with a 6 kg maximum wrist load. Its official sheet specifies a 1200 mm diameter by 450 mm high work envelope, 250 kg mechanical weight, ±0.03 mm repeatability and IP69K protection. The PACK EXPO 2026 announcement pairs it with SR-12iA/C for placing sausage links into packages.
Request a quote
Price
Quote-only — the maker does not publish a price. Request a quote for your configuration.
Request a quoteAlternatives
Frequently asked questions
- How much does FANUC DR-3iB/6 Stainless cost?
- Quote-only — the maker does not publish a price. Request a quote for your configuration.
- What are the known specifications of FANUC DR-3iB/6 Stainless?
- Payload: 6 kg · Weight: 250 kg · Degrees of freedom: 4
- What are the alternatives to FANUC DR-3iB/6 Stainless?
- Comparable catalog models: Doosan Robotics A0509, FANUC CRX-10iA, FANUC SR-12iA/C, FANUC SR-9iA/R.
- Is FANUC DR-3iB/6 Stainless still sold?
- Current availability is not verified. Confirm sales and stock with the maker.
Specifications
- Weight
- 250 kg
- Payload
- 6 kg
- Reach
- 1200 mm work envelope diameter
- Degrees of Freedom
- 4
Use cases
SDKs & programming
Source-reported details
These fields preserve wording reported by manufacturer or regulatory sources. They are not standardized comparison metrics; verify current details with the official source.
- ipClass
- IP69K (body and wrist/J3 arm)
- reachReference
- Work envelope diameter 1200 mm; height 450 mm
- repeatability
- ±0.03 mm
