H2-A
More actions
Fixed-base dual-arm humanoid platform for research and industrial operations

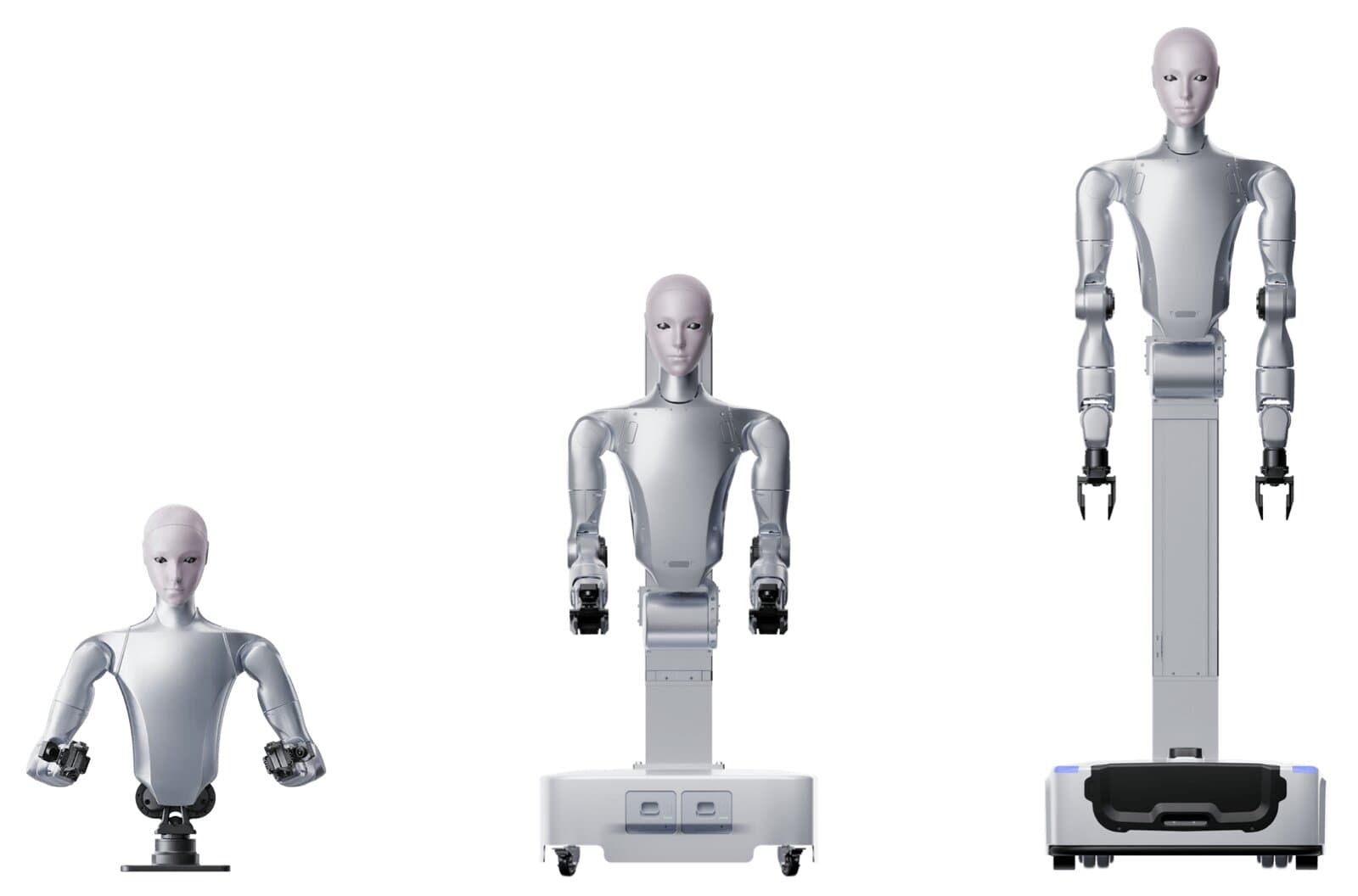

More from Unitree RoboticsAccording to Unitree, H2-A Standard is the fixed-base product line in its H2 Series dual-arm humanoid portfolio. Two seven-degree-of-freedom arms combine with a three-axis waist and a two-axis head for 19 degrees of freedom, excluding end effectors. Unitree specifies approximately eight hours of battery operation depending on operating conditions, or direct power for 7×24-hour operation. The maker describes industrial, commercial and research applications, with optional grippers or dexterous hands. Arm load depends on arm extension posture, and parameters vary with scenario and configuration.
Request a quote
Price
Quote-only — the maker does not publish a price. Request a quote for your configuration.
Request a quoteAlternatives
Frequently asked questions
- How much does Unitree Robotics H2-A cost?
- Quote-only — the maker does not publish a price. Request a quote for your configuration.
- What are the known specifications of Unitree Robotics H2-A?
- Payload: 7 kg · Runtime: 8 h · Weight: 33.5 kg
- What are the alternatives to Unitree Robotics H2-A?
- Comparable catalog models: AgiBot A2, Unitree G1, Booster T2, Boston Dynamics Atlas.
- Is Unitree Robotics H2-A still sold?
- Current availability is not verified. Confirm sales and stock with the maker.
Specifications
- Weight
- 33.5 kg
- Payload
- 7 kg
- Runtime
- 8 h
- Reach
- ~0.6 m (single arm, excluding dexterous hands)
- Degrees of Freedom
- 19
- Battery
- Quick-Release Battery: 75.6V/15Ah(972Wh)
Use cases
SDKs & programming
Source-reported details
These fields preserve wording reported by manufacturer or regulatory sources. They are not standardized comparison metrics; verify current details with the official source.
- armPayloadQualifier
- The maximum load of the arm varies greatly under different arm extension postures.
- baseComputing
- PC1: Intel Core i5 (Platform Capabilities) PC2: Intel Core i7 (Custom Development)
- batteryLife
- Battery Power Supply: Approx. 8h (Depending on Operating Conditions)
- configuration
- H2-A Standard — Fixed Base
- connectivity
- WiFi 6 & Bluetooth 5.2
- directPowerSupply
- Direct Power Supply: 7*24H
- endEffectorOptions
- Optional 2-Finger Gripper / 3-Finger Dexterous Hand / 5-Finger Dexterous Hand
- headDegreesOfFreedom
- 2
- maximumArmJointTorque
- 120N.M
- maximumArmPayload
- Peak: ~15 kg Rated: ~7 kg
- overallDimensions
- 780x444x200mm
- parameterQualifier
- Parameters may vary in different scenarios and configurations
- perceptionSensors
- Humanoid Binocular Camera with Wide Field of View ×1 Wrist HD Camera ×2
- secondaryDevelopment
- SDKs and APIs; secondary development supported
- singleArmDegreesOfFreedom
- 7
- singleArmReachExcludingHands
- ~0.6m
- totalDegreesOfFreedomExcludingEndEffector
- 19
- waistDegreesOfFreedom
- 3
- waistJointRangeOfMotion
- Yaw: ±155° Pitch:+25°/-30° Roll: ±30°
- weightWithBattery
- 33.5Kg
